DVB-S/S2 IPTV IRD with 2-CI

Name: DVBSS2 IPTV IRD with 2CI
Brand: Fiber Linker
Price: 1 USD

Place of Origin : China

Brand Name : Fiber Linker

Model Number : FL-5266

MOQ : 1PCS

Packaging Details : Carton

Delivery Time : 5day

Payment Terms : TT, Westen Union, Paypal

Supply Ability : 100pcs

Contact Now

Overview

FL-5266 DVB-S/S2 IPTV IRD supports 1xDVB-S/S2 RF and 1xASI input. It has 2×CI interfaces and supports multi-type of CAM cards. It can output ASI and IP (SPTS, TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems

Features

Support DVB-S/DVB-S2/ASI input

Support ASI/TS over UDP output

Common interface with 2 slots (PCMCIA) supports multi-type of CAM cards

2 slots of PCMCIA module could descramble multi-program stream

Frequency Range: 950~2150Mhz

Technical Specification

Input	ASI	BNC interface
Input	RF (DVB-S/S2)	F-head (950~2150MHz)
Output	ASI	BNC interface
Output	IP	TS over UDP/16×SPTS (100M, RJ45 port)
Symbol Rate		1-45 Mbaud/s
DVB-CI Parameters		CI Interface Card Separation: PCMCIA
Control		NMS (Ethernet port, RJ-45), Keyboard + LCD
General Features	Size	482mm×240mm×44mm
	Temperature Range	0~45°C (Operation); -20~80°C (Storage)
	Power	100-240VAC, 50Hz, 25W

China DVB-S/S2 IPTV IRD with 2-CI factory

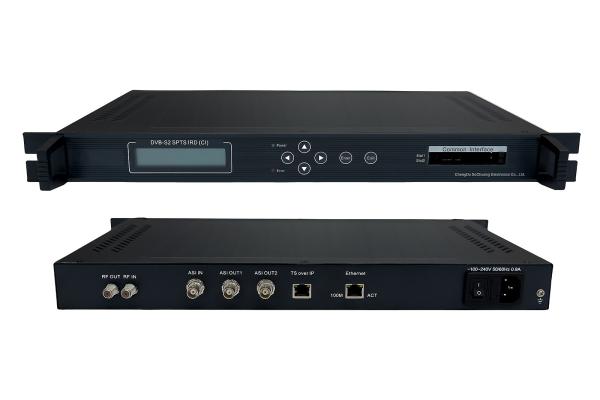

DVB-S/S2 IPTV IRD with 2-CI Images
